New / One-Trip

20ft All-Side-Open Container - Plywood Floor - RAL 3020 Traffic Red

The 20ft All-Side-Open Container - Plywood Floor is a new unit suited to full-perimeter access and event or display use.

SKU:: AO-20-ASO-PLY-NEW-RAL3020
Depot:: Long Beach, CA depot

Colour: RAL 3020 Traffic Red

Other RAL colours are available as painted-to-order custom work — request a quotation.

$3,195

Excludes applicable sales tax and delivery. The full total is shown before payment is authorized.

In stock

Delivery available — automatic pricing for configured areas, quotation elsewhere
Pickup available from the Long Beach depot (scheduled in advance)

Quantity

max 5 per online order

Key Features

CSC plated for international transport
Corten weathering steel construction
Lockable cargo doors with galvanised locking bars
28 mm marine-grade plywood

Product Description

20FT All Side Open Shipping Container (8'6")

Maximum Accessibility. Industrial-Grade Versatility.

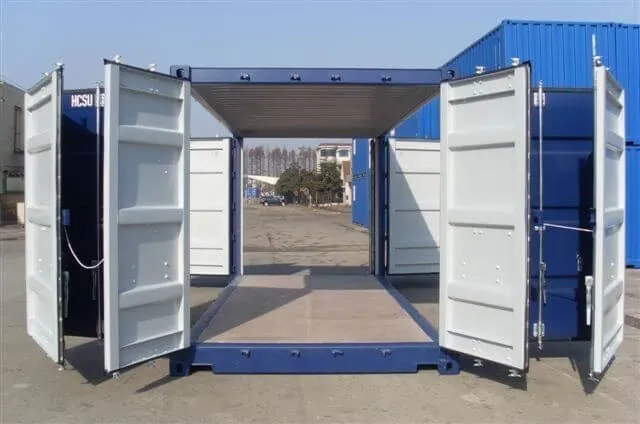

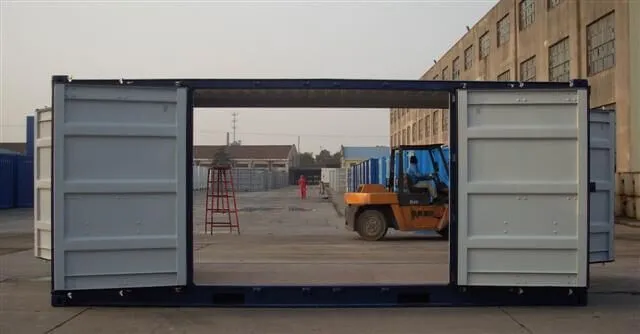

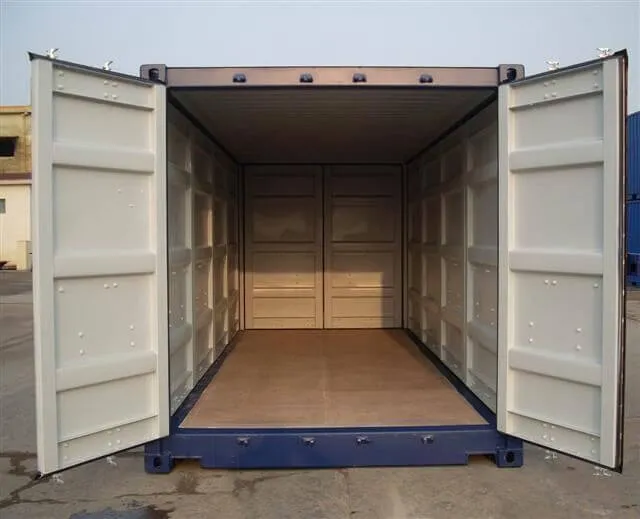

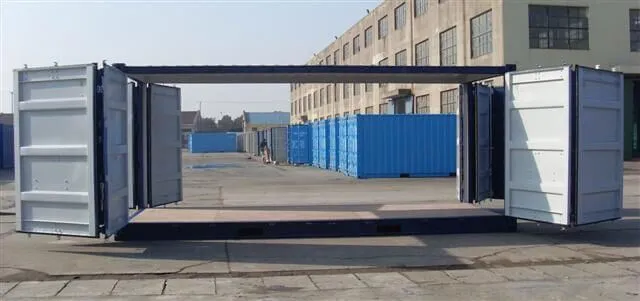

The 20FT All Side Open Shipping Container (8'6") is engineered for seamless cargo handling from every angle. With full-perimeter door access — rear, side, and front — this container redefines load flexibility, operational efficiency, and spatial control.

Constructed from high-tensile CORTEN steel and fitted with ISO corner castings, this unit is both CSC-certified and fully compatible with intermodal stacking, yard placement, and international shipping. Its marine-treated plywood floor, integrated forklift pockets, and gasket-sealed door panels make it a resilient performer across logistics, industrial, agricultural, and conversion settings.

Key Product Features

Four-Sided Door Access
Hinged doors on all sides allow fast entry, exit, and load sequencing. Improve turnaround time and staging precision across workflows.
Industrial Marine Plywood Flooring
28mm marine-grade hardwood floor panels resist warping under heavy static or rolling loads.
Double High Locking Gear
Reinforced locking bars for smoother door operation and added mechanical torque.
Forklift Pockets
Integrated base channels support lateral movement and secure yard placement with forklifts or container handlers.
Integrated Lockbox
Welded lockbox installed on cargo doors for added padlock security.
Weather Vents
Built-in vents manage internal air circulation and reduce moisture buildup from stored materials.
Stackable, ISO-Certified Design
Suitable for vertical stacking and containerized intermodal systems. Meets international handling standards.

Specifications

Attribute	Measurement
Container Type	20FT All Side Open – 8'6" Height
External Dimensions (L × W × H)	20’ × 8’ × 8’6”
Internal Dimensions (L × W × H)	19’4” × 7’8” × 7’10”
Side Door Openings (Each)	Approx. 7’8” W × 7’5” H (per panel)
Tare Weight	~5,350 lbs
Max Gross Weight	67,200 lbs
Payload Capacity	~61,850 lbs
Material	CORTEN steel exterior
Flooring	Marine-treated 28mm plywood
Locking System	Double high locking bars with lockbox
Color	RAL5013 (custom finishes available)
Optional Coatings	Anti-graffiti, logo repainting, or full respray

Structural Advantages

All four door panels are hinged and gasket-sealed for watertight protection
Reinforced sidewall framing supports vertical loads and mechanical door operations
Forklift-friendly design enables quick site relocation or reorientation
Compatible with standard shipping and rail chassis for intermodal movement
Ventilation features provide air circulation for cargo stability during long-term storage

Ideal Applications

Freight Forwarding & Transport Hubs

Streamline container yard operations or modular transloading with full side-crane and forklift entry.

Automotive & Industrial Storage

Accommodates wide-entry loading for vehicles, equipment, machinery parts, or angled access pallet loads.

Agricultural Transport & Processing

Supports mobile storage or movement of crates, bins, or produce from farm to facility — loadable from any side.

Event & Production Staging

Functions as a high-access prep bay for festivals, field kitchens, construction depots, or event material sorting.

Container Conversion Projects

Ideal foundation for architectural builds such as pop-up retail units, mobile galleries, kiosks, food service stands, or showrooms due to its 360° accessibility.

Certifications & Handling Notes

ISO Compliant: Standard corner castings, chassis-fit base, and intermodal-ready
CSC Certified: Suitable for international shipping and cargo stacking
Forklift Compatible: Lateral movement supported by built-in forklift tunnels
Ventilated Design: Safe for use with moisture-sensitive or mixed cargo types

Summary

The 20FT All Side Open Shipping Container (8'6") offers unmatched flexibility in containerized logistics, mobile staging, and architectural transformation. Its four-sided access, ISO compliance, and industrial-grade build make it a strong choice for organizations demanding both mobility and control.

Inspection reports, door panel clearance specs, and CAD files are available upon request. Nationwide delivery available.

Technical Specifications

Technical specifications for 20ft All-Side-Open Container - Plywood Floor - RAL 3020 Traffic Red
Product type	Shipping container
Design	Open-Side / Full-Side-Opening
Condition	New / One-Trip
Exterior (L × W × H)	19′ 10.5″ × 8′ 0″ × 8′ 6″
Interior (L × W × H)	19′ 4″ × 7′ 8″ × 7′ 10″
Door opening (W × H)	7′ 8″ × 7′ 5″
Tare weight	≈ 4,850 lb
Max gross weight	67,200 lb
Internal capacity	≈ 1,172 cu ft
Door configuration	Hinged, gasket-sealed door panels on all four sides
Floor material	28 mm marine-grade plywood
Exterior colour	RAL 3020 Traffic Red
Lockbox	Fitted
Forklift pockets	Yes
Ventilation	Passive weatherproof vents
Certification	CSC plated for international transport

What New / One-Trip Means

A new or one-trip container has generally completed one initial cargo movement from its manufacturing origin. Minor handling marks, paint abrasions, small dents, floor marks, or other transportation-related cosmetic evidence may still be present. This is normal for one-trip units and does not affect the stated condition classification.

Read the full Container Condition Guide

Delivery Requirements

Processing: 1–3 business days after payment, verification, and receipt of required information.
Delivery estimate: 5–10 business days after processing.
Site access: tilt-bed delivery of a 20ft container needs a straight, firm approach (roughly 60 feet), 12–14 feet of width, and clear overhead access free of wires and branches.
Unloading: tilt-bed standard; flatbed, crane, or chassis options are quoted based on your site.
Complex sites are switched to quotation mode so transportation can be planned correctly — request a delivered price.

Intended Uses

Full-perimeter access
Event or display use

Customers are responsible for confirming that the product and intended use comply with applicable zoning, building, environmental, fire, safety, transportation, and permit requirements. This product is not represented as suitable for housing, food storage, hazardous materials, or regulated uses unless expressly stated in writing.

Returns and Warranty

Eligible standard product: returns may be requested within 18 calendar days of delivery, subject to authorization. Customer pays return transportation for change-of-mind returns.
Structural integrity and wind/watertight condition warranted at delivery; see Warranty Policy.

Returns and Refunds Policy Warranty Policy
