New / One-Trip

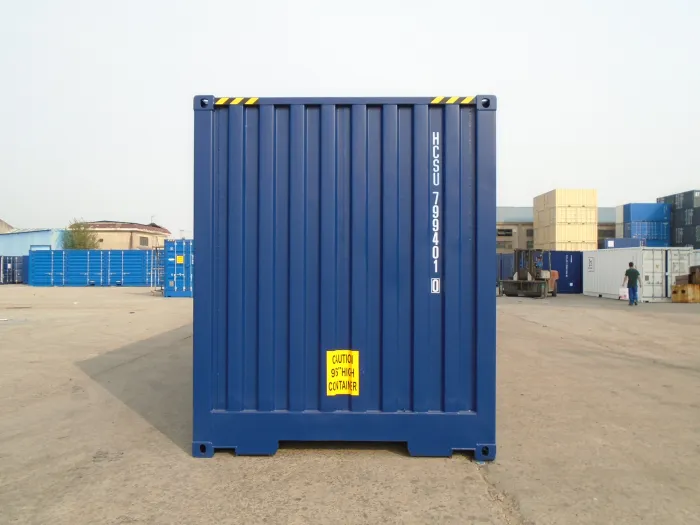

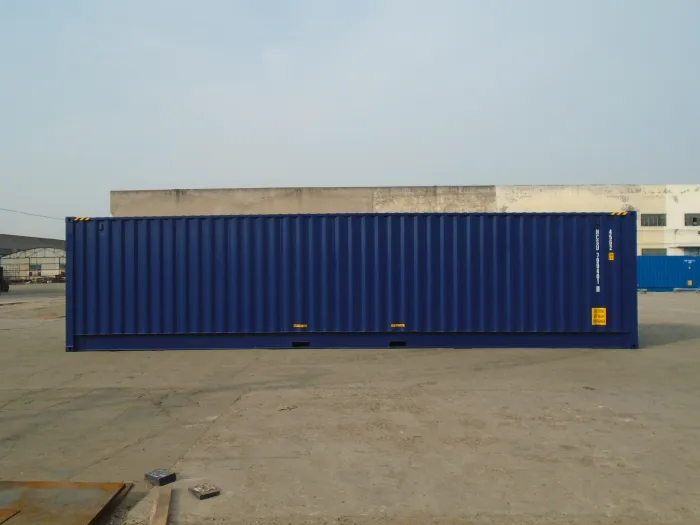

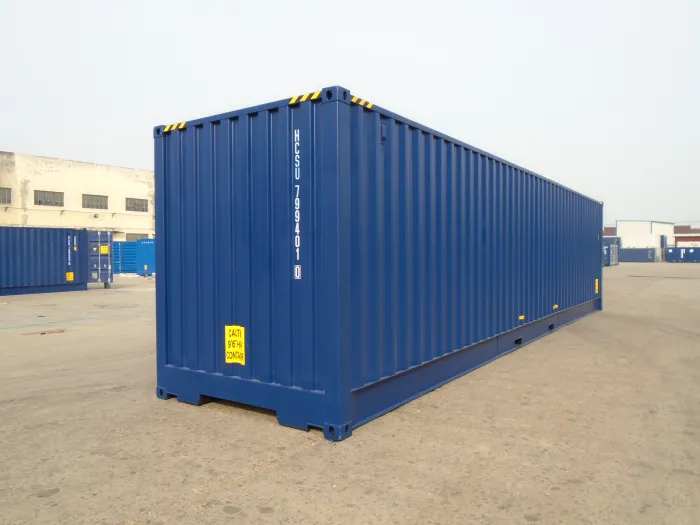

40ft High-Cube Open-Side Shipping Container - Plywood Floor - RAL 5010 Gentian Blue

The 40ft High-Cube Open-Side Shipping Container - Plywood Floor is a new high-cube unit suited to side loading with a forklift, retail and display conversions.

SKU:: AO-40HC-OS-PLY-NEW-RAL5010
Depot:: Long Beach, CA depot

Colour: RAL 5010 Gentian Blue

Other RAL colours are available as painted-to-order custom work — request a quotation.

$4,395

Excludes applicable sales tax and delivery. The full total is shown before payment is authorized.

In stock

Delivery available — automatic pricing for configured areas, quotation elsewhere
Pickup available from the Long Beach depot (scheduled in advance)

Quantity

max 5 per online order

Key Features

CSC plated for international transport
Corten weathering steel construction
Lockable cargo doors with galvanised locking bars
28 mm marine-grade plywood

Product Description

40FT High Cube Open Side Container

Full-Length Access. High-Cube Efficiency. Industrial Strength.

The 40FT High Cube Open Side Container delivers maximum accessibility and internal volume, combining standard rear cargo doors with a full-length, side-opening system. Designed for loading efficiency and oversized cargo handling, this unit is ideal for commercial, construction, logistics, and modular conversion environments.

Built from anti-corrosive CORTEN steel and equipped with full CSC certification, this container offers the structural reliability and ISO compatibility required for both static and intermodal deployment.

Product Specifications

Specification	Metric (mm)
External Dimensions (L × W × H)	12,192 × 2,438 × 2,896
Internal Dimensions (L × W × H)	12,032 × 2,430 × 2,471
Rear Door Opening (W × H)	2,358 × 2,388
Side Door Opening (W × H)	11,556 × 2,311
Internal Volume	72.20 m³
Tare Weight	6,580 kg
Maximum Payload	23,900 kg
Gross Weight Rating	30,480 kg

Key Structural Features

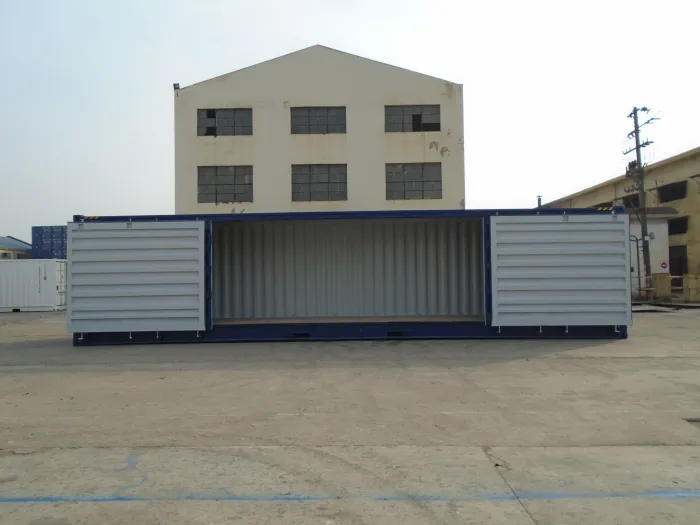

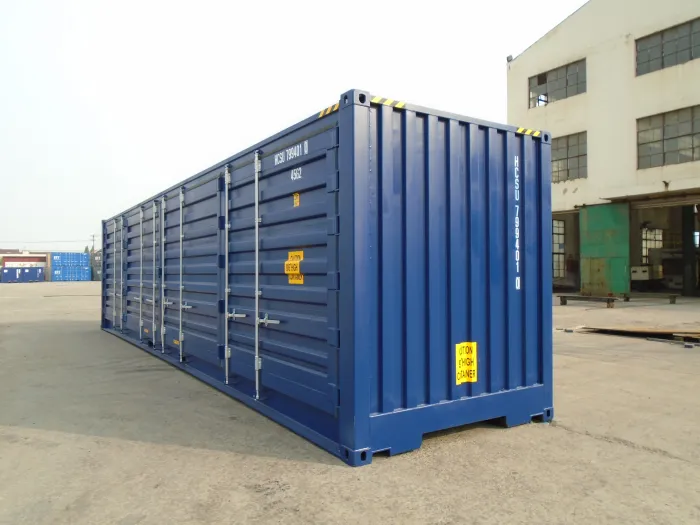

Full-Length Side Access Doors
Swing-out panels with reinforced hinges and vertical locking bars. Ideal for wide or irregular cargo loading.

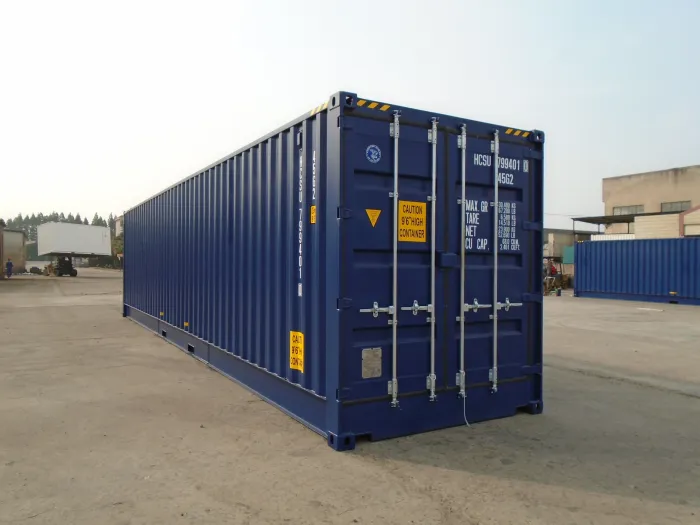

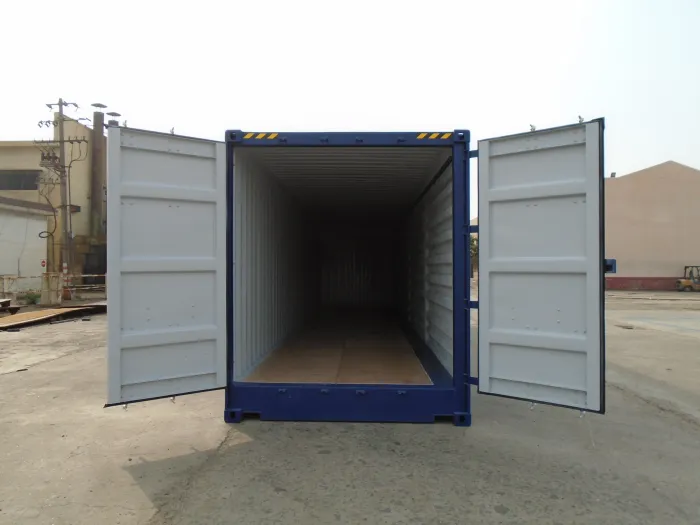

Rear Double Cargo Doors
Standard ISO-specified doors with lockable handles and compression gaskets for weather resistance.
Construction
All-weather CORTEN steel, corrugated walls and roof, ISO corner castings for intermodal compatibility.
Flooring
Forklift-ready, marine-grade plywood flooring fixed to steel cross-members. Sealed for moisture resistance and surface integrity.
Ventilation
Passive airflow via built-in air vents to maintain interior air circulation in varying climates.
Security
Integrated lockboxes on rear and side doors support standard padlocks for tamper resistance.
Handling Compatibility
Two-way forklift pockets for maneuverability, ISO corner castings for stacking and crane lifting.
Paint Finish
RAL 5013 Blue by default; custom RAL color options available upon request.

Functional Use Cases

Industrial Equipment Storage

Accommodates long-form machinery, pipelines, and oversized components with side-loading flexibility.

Construction Site Deployment

Supports tools, fixtures, and rolling materials for staged workflows. Full side access speeds material retrieval and return.

Modular Conversion Projects

Ideal foundation for containerized retail units, exhibition structures, mobile clinics, or wide-display installations.

Agricultural & Freight Logistics

Simplifies side-loading of pallets, crates, or bulk materials where traditional rear-door access is limiting.

Events, Retail & Displays

Transforms into a walk-in venue or open-access container shop for temporary or mobile operations.

Structural Integrity & Compliance

All containers are CSC plated and certified for international shipping
Side doors are wind-rated and reinforced for structural consistency
Flooring is sealed and fastened to steel underframe
Roof and walls feature corrugated reinforcement for long-haul durability
ISO-compliant corner castings for stacking, rail, or sea transport

Customization Options

Custom paint finishes and internal modifications (e.g., shelving, lighting, security upgrades) are available upon request. Each container can be tailored for modular applications or industry-specific configurations.

Technical Specifications

Technical specifications for 40ft High-Cube Open-Side Shipping Container - Plywood Floor - RAL 5010 Gentian Blue
Product type	Shipping container
Design	Open-Side / Full-Side-Opening
Condition	New / One-Trip
Exterior (L × W × H)	40′ 0″ × 8′ 0″ × 9′ 6″
Interior (L × W × H)	39′ 5″ × 7′ 8″ × 8′ 10″
Door opening (W × H)	7′ 8″ × 8′ 5″
Tare weight	≈ 8,750 lb
Max gross weight	67,200 lb
Internal capacity	≈ 2,694 cu ft
Door configuration	Rear cargo doors plus full-length side opening
Floor material	28 mm marine-grade plywood
Exterior colour	RAL 5010 Gentian Blue
Lockbox	Fitted
Forklift pockets	Yes
Ventilation	Passive weatherproof vents
Certification	CSC plated for international transport

What New / One-Trip Means

A new or one-trip container has generally completed one initial cargo movement from its manufacturing origin. Minor handling marks, paint abrasions, small dents, floor marks, or other transportation-related cosmetic evidence may still be present. This is normal for one-trip units and does not affect the stated condition classification.

Read the full Container Condition Guide

Delivery Requirements

Processing: 1–3 business days after payment, verification, and receipt of required information.
Delivery estimate: 5–10 business days after processing.
Site access: tilt-bed delivery of a 40ft container needs a straight, firm approach (roughly 100 feet), 12–14 feet of width, and clear overhead access free of wires and branches.
Unloading: tilt-bed standard; flatbed, crane, or chassis options are quoted based on your site.
Complex sites are switched to quotation mode so transportation can be planned correctly — request a delivered price.

Intended Uses

Side loading with a forklift
Retail
Display conversions

Customers are responsible for confirming that the product and intended use comply with applicable zoning, building, environmental, fire, safety, transportation, and permit requirements. This product is not represented as suitable for housing, food storage, hazardous materials, or regulated uses unless expressly stated in writing.

Returns and Warranty

Eligible standard product: returns may be requested within 18 calendar days of delivery, subject to authorization. Customer pays return transportation for change-of-mind returns.
Structural integrity and wind/watertight condition warranted at delivery; see Warranty Policy.

Returns and Refunds Policy Warranty Policy
